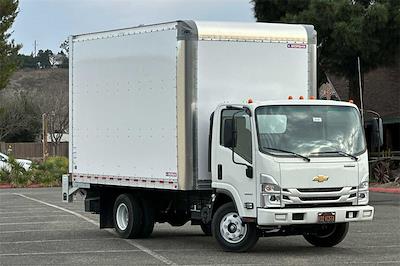

New 2024 Chevrolet LCF 3500 Regular Cab 14' Morgan Truck Body Box Truck with Liftgate
Stock #241401
Chassis Details
Stock Number
241401
Stock Type
New
Year
2024
Make
Chevrolet
Model
LCF 3500
Class
3
GVWR
12,000
Drivetrain
RWD
Cab Type
Regular
Vehicle Trim
WT
Vehicle VIN
54DBDW1D1RS222982
Interior Color
Medium Ash Gray, Cloth seat trim
Seating Capacity
3
Exterior Color Description
Arc White
Engine Cylinder Count
6
Engine
6.6L 88
Transmission Type
Automatic
Fuel Type
Gasoline
Engine Model
L8T
Engine Size (L)
6.6
Horsepower
350
Brake Type
Hydraulic
Vehicle Options
- Vehicle Application Truck
- Seat, front high back bucket driver and passenger tricot cloth covered reclining high back driver seat with single two-occupant fold down passenger seat (STD)
- Lighting, interior dome
- Windshield washer bottle access on passenger side dash when passenger-side door is open
- Air conditioning, single-zone manual, integral in-dash mounted
- Wheels, 16" x 6, K. steel (STD)
- Emissions, 50 state certification
- Incomplete vehicle certification
- Rear axle, 4.10 ratio
- Steering column, Tilt-Wheel
- Windshield wiper, pulse, wet arm
- Steering wheel, urethane
- Drivetrain, rear-wheel drive
- Floor mats
- Grille, Silver
- Windows, power
- Exhaust, single outlet
- Tires, front, 215/85R16 E, LRR (low rolling resistance) tubeless steel belted radial, all-season
- Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
- Tires, rear, 215/85R16 E, LRR (low rolling resistance) tubeless steel belted radial, all-season
- Brake, parking, cable actuated, internal expanding drum type, transmission-mounted
- Cup holders
- Daytime Running Lamps
- Mirror, outside left-hand and right-hand with integral convex mirrors
- Rear suspension, 12,900 lbs. (5851 kg), multi-leaf, semi-elliptical steel alloy. Includes shock absorbers
- Cruise control, electronic, automatic
- Transmission, 6-speed automatic, 6L90-E Hydra-Matic with lock-up converter and overdrive. Ratios: Gear and Ratios 4.027, 2.364 ,1.532, 1.152, 0.852, 0.667, Rev. 3.064:1 (STD)
- Battery, 750 cold-cranking amps, 12-volt single, maintenance free, frame-mounted battery box
- LED Headlamps
- Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
- Assist steps
- Fuel tank, 38.6 Gallon, (146L), rectangular fuel tank mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill.
- Engine, 6.6L V8 SIDI, GMPT-V8 8 cylinder V Iron block, four cycle overhead valve water cooled 6.6L SIDI V8 350 hp [261 kW] @ 4500 rpm, 425 lb.-ft of torque [575.8 N-m] @ 3800 rpm. Electronically controlled direct fuel injection. Six bolt main cap design for heavy-duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control, engine oil cooler, High Idle Mode (1200 rpm). (STD)
- Seat trim, Cloth
- Storage, door pockets
- Storage, seatback pockets
- Driver Information Center
- Glass, tinted
- Door locks, power
- GVWR, 12,000 lbs. (5443 kg)
- Brakes, 4-wheel antilock, front and rear disc
- Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering, with an 18.8-20.9:1 gear ratio
- Wheelbase, 132.5" (336.6 cm)
- Audio system feature, 2 speakers
- Medium Ash Gray, Cloth seat trim
- Arc White
- Preferred Equipment Group
- PIO, Audio System, Enhanced audio system
- Transmission, 6-speed automatic, 6L90-E Hydra-Matic with lock-up converter and overdrive.
- Wheels, 16" x 6, K. steel
- PIO, Rear Vision Camera
- Engine, 6.6L V8 SIDI, GMPT-V8 8 cylinder V Iron block, four cycle overhead
- Seat, front high back bucket driver and passenger
- Ship Thru, Ocean Freight Surcharge
- PIO, Remote Keyless Entry
- 50-STATE EMISSION
- 38.6 GALLON FUEL TANK
- View All
Body Details
Manufacturer
Body Type
Box Truck
Body Model
GVFD09714096
Body Material
FRP
Body Length
14'
Body Width
96"
Body Height
103-3/8"
Body Inside Height
97"
Body Weight
2219 lbs
Bumper Description
5” Structural Bumper with Pooched Surface And Closure Plate
Door Type
Overhead
Door Description
Overhead Roll-up Door
Door Location
Rear
Door Width
88"
Door Height
91.25"
Door Type
Side
Door Description
41" x 89" Single Panel Door
Floor Description
1-3/8" Pine Floor
Floor Material
Pine
Lighting Description
Dome Light with Indicator Switch Mounted in Cab Dash
Lighting Location
Interior
Lighting Type
LED
Lighting Description
LED Sealed Clearance Lights | Per FMVSS-108 Installed in Front Corner Caps, Side Top Rails and Five Across Rear Header
Lighting Location
Exterior
Mud Flaps Description
Morgan 24" x 36" Black
Roof Type
Solid
Roof Description
.032” One-piece Aluminum Sheet with Anti-snag Roof Bows On 24” Centers
Liftgate Manufacturer
Waltco
Liftgate Model
EMW-25
Liftgate Description
50" x 64"
Liftgate Material
Steel
FRP Dry Freight Features
- SUBFRAME - 3" I-beam Crossmembers On 12" Centers With 4" Longrail, Mylar Tape Is Applied Between All Steel Subframe Components And Extruded Aluminum Lower Bottom Rails To Prevent Corrosion
- FLOOR - 1- 1/8” Laminated Hardwood Fastened To Subframe With 2 Countersunk Screws Per Floor Board Per Cross Member In A Staggered Pattern. Floor Boards Are Ship Lapped And Preundercoated For Protection From Elements
- THRESHOLD - Steel Galvanized Angle Flush To Rear
- REAR DOOR - Overhead Roll-up Door
- REAR FRAME - Galvannealed Steel - Painted Imron White, Includes Built-in Header Design, Clearance Light Protector And Rain Deflector, Curbside And Roadside Grab-handles
- ROOF - .032” One-piece Aluminum Sheet With Anti-snag Roof Bows On 24” Centers With Crowned Roof Design Which Prevents Water/Ice Pooling
- SKINS - Fiberglass Reinforced Plywood (FRP) Panels Are Built Of Sturdy 3/8" Plywood For Improved Durability; And Surfaced With A Polyester Resin Reinforced With High Strength Woven Fiberglass, For Greater Resistance To Scratches And Dents
- SIDE WALL - Extruded Aluminum Top And Bottom Rails With 1-3/8” Deep Galvanized Steel Z-shaped Vertical Posts Installed On 16” Centers
- FRONT END - Aerodynamic Aluminum Radii And Morgan’s Patented Poly-tuff Corner Caps
- BUMPER - 5” Structural Bumper With Pooched Surface And Closure Plate
- INTERIOR LIGHTING - (1) Domelight With Indicator Switch Mounted In Cab Dash
- EXTERIOR LIGHTING - LED Sealed Clearance Lights, Per Fmvss-108 Installed In Front Corner Caps, Side Top Rails And Five Across Rear Header
- MOUNTING - Full Mount - U Bolt
- MUDFLAPS - Morgan 24" X 36" Black
Body Installed by
Morgan Truck Body
111 Morgan Way
Morgantown, PA 19543
| Call For Pricing |
Pricing Details
| MSRP | $63,110 |
| Body Cost | + $27,434 |
| Dealer Discount | - $14,439 |
| Internet Price | $76,105 |
| Consumer Cash | - $3,500 |
| Price | $72,605 |
Discounts include the manufacturer's rebate.
Vehicle available NOW in Buellton, CA.
Contact Rio Vista Chevrolet for more info.
