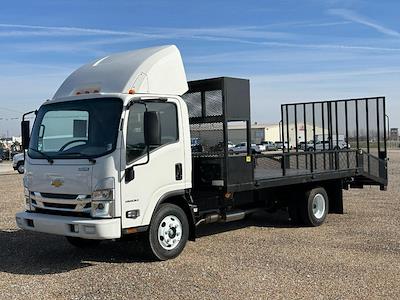

New 2024 Chevrolet LCF 3500 Regular Cab Dovetail Landscape
Stock #CC4019
Vehicle Notes
CM Truck 14-ft Landscape body, Arc White with Medium Ash Gray Cloth seats, 6.6L V8 gas engine, 12,000 lbs GVWR, a 4.10 ratio axle, with a 150-inch whe…
Read More…
Read More…
Chassis Details
Stock Number
CC4019
Stock Type
New
Year
2024
Make
Chevrolet
Model
LCF 3500
Class
3
GVWR
12,000
Drivetrain
RWD
Cab Type
Regular
Vehicle Trim
MEDIUM ASH GRAY
Vehicle VIN
54DBDW1D6RS215476
Interior Color
Medium Ash Gray, Cloth seat trim
Seating Capacity
3
Exterior Color Description
Arc White
Engine Cylinder Count
6
Transmission Type
Automatic
Fuel Type
Gasoline
Engine Model
L8T
Engine Size (L)
6.6
Horsepower
350
Brake Type
Hydraulic
Vehicle Options
- Audio system feature, 2 speakers
- Vehicle Application Truck
- Lighting, interior dome
- Windshield washer bottle access on passenger side dash when passenger-side door is open
- Air conditioning, single-zone manual, integral in-dash mounted
- Wheels, 16" x 6, K. steel (STD)
- Emissions, 50 state certification
- Incomplete vehicle certification
- Rear axle, 4.10 ratio
- Steering column, Tilt-Wheel
- Windshield wiper, pulse, wet arm
- Steering wheel, urethane
- Drivetrain, rear-wheel drive
- Floor mats
- Windows, power
- Exhaust, single outlet
- Tires, front, 215/85R16 E, LRR (low rolling resistance) tubeless steel belted radial, all-season
- Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
- Tires, rear, 215/85R16 E, LRR (low rolling resistance) tubeless steel belted radial, all-season
- Brake, parking, cable actuated, internal expanding drum type, transmission-mounted
- Cup holders
- Daytime Running Lamps
- Rear suspension, 12,900 lbs. (5851 kg), multi-leaf, semi-elliptical steel alloy. Includes shock absorbers
- Cruise control, electronic, automatic
- Transmission, 6-speed automatic, 6L90-E Hydra-Matic with lock-up converter and overdrive. Ratios: Gear and Ratios 4.027, 2.364 ,1.532, 1.152, 0.852, 0.667, Rev. 3.064:1 (STD)
- Battery, 750 cold-cranking amps, 12-volt single, maintenance free, frame-mounted battery box
- LED Headlamps
- Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
- Assist steps
- Fuel tank, 38.6 Gallon, (146L), rectangular fuel tank mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill.
- Wheelbase, 150" (381.0 cm)
- Engine, 6.6L V8 SIDI, GMPT-V8 8 cylinder V Iron block, four cycle overhead valve water cooled 6.6L SIDI V8 350 hp [261 kW] @ 4500 rpm, 425 lb.-ft of torque [575.8 N-m] @ 3800 rpm. Electronically controlled direct fuel injection. Six bolt main cap design for heavy-duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control, engine oil cooler, High Idle Mode (1200 rpm). (STD)
- Seat trim, Cloth
- Storage, door pockets
- Storage, seatback pockets
- Driver Information Center
- Glass, tinted
- Door locks, power
- GVWR, 12,000 lbs. (5443 kg)
- Brakes, 4-wheel antilock, front and rear disc
- Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering, with an 18.8-20.9:1 gear ratio
- Medium Ash Gray, Cloth seat trim
- PIO, Mirror, outside left-hand and right-hand with integral convex mirrors, heated, dual remote controls
- PIO, Mirror Bracket Extension
- PIO, Extra Set of Keys
- Arc White
- Preferred Equipment Group
- PIO, Audio System, Enhanced audio system
- Transmission, 6-speed automatic, 6L90-E Hydra-Matic with lock-up converter and overdrive.
- Wheels, 16" x 6, K. steel
- PIO, Seat, high back driver only torsion-bar with foam pads suspension system and fixed passenger seat
- PIO, Rear Vision Camera
- PIO, Rear dome and body lamp switch
- PIO, Roof-air deflector
- Engine, 6.6L V8 SIDI, GMPT-V8 8 cylinder V Iron block, four cycle overhead
- PIO, Grille, chrome
- PIO, Back-up alarm
- Ship Thru, Ocean Freight Surcharge
- PIO, Remote Keyless Entry
- 50-STATE EMISSION
- 38.6 GALLON FUEL TANK
- View All
Body Details
Manufacturer
Body Type
Dovetail Landscape
Body Model
14' + 5' Dovetail Landscape
Toolbox Description
2' x 2' x 8' Storage Cage with Locking Latch
Body Description
4" Structural Channel Steel Frame Rails, 3" x 3/16" Channel Crossmembers, Steel Rear Skirt Light Box
Body Material
Steel
Body Length
14'
Cargo Control Type
Tie-Down Rings
Cargo Control Description
Welded with D-Rings
Cargo Control Quantity
4

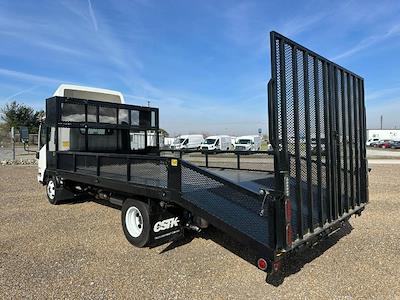

Dovetail Description
(2) 72" Rear Ramps
Dovetail Length
5'
Floor Description
Treadplate Deck
Floor Material
Steel
Floor Thickness
1/8"
Lighting Type
LED
Lighting Description
DOT Red/White Oval Lights with 2" Colored Marker Lighting
Lighting Location
Exterior
Alarm Type
Back Up
LB Landscape Body Features
The LB is designed to keep you and your crew organized and productive, no matter how many job sites you visit in a day. Smart features make quick work of loading and unloading, while rock-solid construction delivers lasting strength and durability.
Standard Features
- Lengths: 10'+5DT, 12'+5DT, 14'+5DT
- Deck: 1/8" Treadplate
- Frame Rails: 4" Structural Channel Steel
- Crossmembers: 3" x 3/16" Channel
- Rear Skirt: Dovetail w/Two 72" Rear Ramps
- Rear Lighting: Red/White LED Oval
- Light Box (Rear Skirt): Steel
- Marker Lighting: 2" Colored LED
- Toolbox: 2' x 2' x 8' Storage Cage with Locking Latch
- Tiedowns: (4) Welded with D-Rings
| Call For Pricing |
Pricing Details
Vehicle available NOW in Granite City, IL.
Contact Weber Chevrolet of Granite City for more info.
(618) 262-0765
