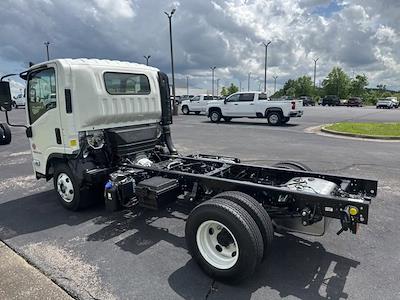

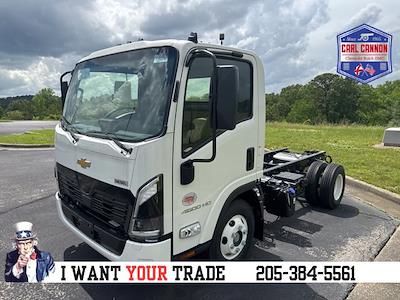

New 2025 Chevrolet LCF 4500HD Regular Cab Cab Chassis

Stock #T25076

New 2025 Chevrolet LCF 4500HD Regular Cab Cab Chassis for sale #T25076 - photo 2

New 2025 Chevrolet LCF 4500HD Regular Cab Cab Chassis for sale #T25076 - photo 3

New 2025 Chevrolet LCF 4500HD Regular Cab Cab Chassis for sale #T25076 - photo 4

New 2025 Chevrolet LCF 4500HD Regular Cab Cab Chassis for sale #T25076 - photo 5

New 2025 Chevrolet LCF 4500HD Regular Cab Cab Chassis for sale #T25076 - photo 6

New 2025 Chevrolet LCF 4500HD Regular Cab Cab Chassis for sale #T25076 - photo 7

Window Sticker

Vehicle Notes

Artic White 2025 Chevrolet 4500 HD LCF Diesel low cab RWD Aisin 6-Speed Automatic 5.2L 4 Cylinder 16V Adaptive Cruise Control, Advanced Driver Assista…
Read More…

Chassis Details

Stock Number

T25076

Stock Type

New

Year

2025

Make

Chevrolet

Model

LCF 4500HD

Class

GVWR

14,500

Drivetrain

RWD

Cab Type

Regular

Vehicle VIN

JALCDW164S7023930

Interior Color

Medium Ash Gray, Cloth Seat Trim

Seating Capacity

Exterior Color Description

Arc White

Engine Cylinder Count

Transmission Type

Automatic

Fuel Type

Diesel

Engine Make

Isuzu

Engine Model

4HK1-TC

Engine Size (L)

5.2

Horsepower

215

Brake Type

Hydraulic

Vehicle Options

Brakes, 4-wheel antilock, front and rear disc with traction control and stability control
Audio system feature, 2 speakers
Vehicle Application Truck
Rear dome and body lamp switch
Airbags, frontal, driver and right front passenger
Emissions, Federal certification. Does NOT meet California emissions requirements - TRUCKS CANNOT BE SOLD OR REGISTERED IN CALIFORNIA.
Lighting, interior dome
Windshield washer bottle access on passenger side dash when passenger-side door is open
LED Headlamps includes integrated LED turn signal indicators
Alternator, 140 amps
Rear axle, 4.56 ratio
Wheels, 16" x 6, K. steel (STD)
Grille, Black
Wheelbase, 109" (276.9 cm)
Rear axle, 11,020 lbs. (4998 kg), full-floating with oil lubricated rear wheel-bearings
Incomplete vehicle certification
Tires, rear, 215/85R16 E all-season (STD)
Windshield wiper, pulse, wet arm
Steering wheel, urethane
Steering wheel, tilt and telescopic
Drivetrain, rear-wheel drive
Driver Information Center, (DIC) (monitors vital functions including diesel exhaust fluid levels (DEF), particulate matter emissions level in the diesel particulate filter (DPF), diesel particulate filter regeneration, service reminders for engine oil, transmission oil, differential oil, power steering fluid, engine oil filter, and fuel filters. Also provides fuel economy reporting by average, instant, and trip.)
Floor mats
Seat, front high back bucket driver and passenger tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat (STD)
Windows, power
GVWR, 14,500 lbs. (6577 kg)
Exhaust, single horizontal outlet
Headlamp washer system
Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide.
Engine, Diesel 5.2L 4 cylinder 215 hp [160.3 kW] @2500 rpm, 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve, four cycle, chain-driven dual overhead camshaft valve train, a cast iron cylinder block, and a cast aluminum cylinder head. Turbocharged, inter-cooled, water cooled EGR, direct injection, electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure, high coolant temperature, and a protection system that will reduce fueling if excessive coolant temperature is detected (STD)
Cup holders
Daytime Running Lamps
Transmission, 6-speed automatic Aisin A465 transmission with fifth and sixth gear overdrive with lock up in 2nd, 3rd, 4th, 5th and 6th, PTO capability automatic torque converter lockup in stationary PTO mode. (STD)
Front suspension, 6,830 lbs. (3098 kg) tapered leaf, semi-elliptical steel alloy. Includes shock absorbers and stabilizer bar.
Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering with an 18.8-20.9:1 gear ratio (Standard on 4500 HD and 4500 XD only.)
Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
Assist steps
Rear Suspension, 9,880 lbs. (4481kg), tapered leaf spring with shock absorbers (Standard on 4500 HD only.)
Tires, front, 215/85R16 E, all-season (STD)
Seat trim, Cloth
Exhaust brake
Storage, door pockets
Fuel tank, 30 Gallon, (113L), stainless steel includes 2 auxiliary fuel ports
Storage, seatback pockets
Glass, tinted
Battery, dual 750 cold-cranking amps, 12 volt, maintenance free
Door locks, power
Air conditioning, single-zone electronic, integral in-dash mounted
Advanced Driver Assistance System
PIO, Mirror, outside left-hand and right-hand with integral convex mirrors, heated
Brake, parking, electronic
PIO, Extra Set of Keys
Arc White
Preferred Equipment Group
PIO, Audio System, Enhanced audio system
California Restriction Acknowledgement.
Automatic Emergency Braking
Wheels, 16" x 6, K. steel
Adaptive Cruise Control
PIO, Rear Vision Camera
Tires, rear, 215/85R16 E all-season
Medium Ash Gray, Cloth Seat Trim
Forward Collision Alert
Seat, front high back bucket driver and passenger
Lane Departure Warning
Tires, front, 215/85R16 E, all-season
Engine, Diesel 5.2L 4 cylinder
Transmission, 6-speed automatic Aisin A465 transmission
50-STATE EMISSIONS
