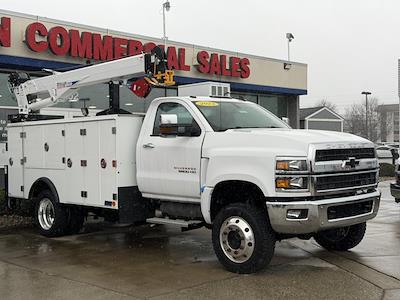

New 2023 Chevrolet Silverado 6500 Regular Cab Mechanics Body
Stock #23-4961
Vehicle Notes
Bachman Chevrolet is located at 9650 Bluegrass Parkway, Louisville, Kentucky 40299. Please shop our website, contact us with your purchase interest, a…
Read More…
Read More…
Chassis Details
Stock Number
23-4961
Stock Type
New
Year
2023
Make
Chevrolet
Model
Silverado 6500
Class
6
GVWR
23,000
Drivetrain
4WD
Wheelbase
165
Cab Type
Regular
Vehicle Trim
Work Truck
Vehicle VIN
1HTKJPVM9PH773557
Interior Color
Dark Ash seats with Jet Black interior accentsCloth
Exterior Color Description
Summit White
Engine Cylinder Count
8
Engine
Turbocharged Diesel V8 6.6L/402
Transmission Type
Automatic
Rear Wheels
Dual
Fuel Type
Diesel
Engine Model
L5D
Engine Size (L)
6.6
Brake Type
Hydraulic
Vehicle Options
- BATTERY TOP POST THREADED BATTERY JUMP START STUD (located on battery box)
- TIRES REAR 225/70R19.5H TRACTION BLACKWALL CONTINENTAL Max Axle Load: 15 500 lb.
- SPARE TIRE DELETE (STD)
- DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS VINYL SEAT TRIM
- AERIAL WORK PLATFORM VOCATIONAL PACKAGE: Provides calibrations specific to chassis with an upfit consisting of an Aerial Lift Bucket or Boom Lift.
- RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A2750RDS ratios: 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 6TH Rugged Duty Series includes park pawl
- LICENSE PLATE KIT FRONT
- GRILLE CHROME
- KEY SYSTEM 2 SPARE KEYS
- REAR AXLE 15 500 LB. (7 031 KG) DANA SPICER S16-130 SINGLE REDUCTION
- BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS includes battery box mounted to left side under cab
- REMOTE KEYLESS ENTRY
- SEATS FRONT 40/20/40 SPLIT-BENCH CLOTH OR VINYL 3-PASSENGER. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar and storage pockets. Includes (AG1) 10-way power seat.)
- VOCATIONAL SPECIFIC HEAVY SUSPENSION PACKAGE Allows the selection of 7 000 lb. 8 000 lb. front axles and/or 15 500 lb. rear spring suspension on trucks that will be upfitted with the following vocational bodies: Utility/Service Bodies Aerial Lift/Bucket bodies Front Plow/Rear Spreader Applications and Landscape Dump Bodies.
- 6-SPEAKER AUDIO SYSTEM
- WORK LIGHT CIRCUIT provides additional wire for utility light at end of frame
- FRONT STABILIZER BAR
- SHOCK ABSORBERS REAR
- ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb.-ft. torque @ 1600 rpm (STD)
- WHEELBASE 165 (419.1 CM) 84 CA (STD)
- FRONT AXLE 7 500 LB. DANA SPICER 60-256 SINGLE-REDUCTION FRONT DRIVING
- RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
- PAINT SCHEME STYLE 1
- ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE Includes compass in instrument cluster.
- DEFOGGER REAR-WINDOW ELECTRIC
- GVWR 23 000 LB. (10 433 KG)
- 34 000 LB. GCWR (15 422 KG)
- SNOW PLOW PREP PACKAGE includes (UNL) auxiliary harness for headlamps and turn signals (KW5) 220-amp alternator forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon
- BUMPER FRONT CHROME
- SKID PLATE STEEL FRAME-MOUNTED PROTECTS THE TRANSFER CASE FROM THE GROUND
- ENGINE BLOCK HEATER
- WINDOWS POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
- REAR SUSPENSION 15 500 LB. (7 031 KG) MULTI-LEAF VARI-RATE
- 4G LTE WI-FI HOTSPOT CAPABLE
- SUMMIT WHITE
- WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
- ASSIST STEPS ALUMINUM
- AXLE LIMITED SLIP DANA SPICER TRUETRAC TORQUE PROPORTIONING LIMITED SLIP
- PAINT SOLID
- SEAT ADJUSTER DRIVER 10-WAY POWER
- WHEELS 19.5 X 6.75 4-ALUMINUM WHEELS 8-HOLES HUB PILOTED Dura-Bright finish is on the outside of the wheel
- AUDIO SYSTEM 7 DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock includes Bluetooth streaming audio for music and select phones. Includes (UQ3) 6-speaker audio system.
- DOOR HANDLES OUTSIDE CHROME
- OIL SEAL FOR FRONT HUB CHICAGO RAWHIDE NITRILE FOR OIL LUBRICATED WHEEL BEARINGS
- DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
- TIRES FRONT 225/70R19.5H TRACTION BLACKWALL CONTINENTAL Max Axle Load: 8 000 lb.
- FOG LAMPS FRONT HALOGEN
- GRILLE GUARD SCREEN STONE PROTECTION (mounted to bumper)
- MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
- REAR AXLE 4.30 RATIO Max road speed: 75 MPH
- HORN DUAL-NOTE
- ALTERNATOR 220 AMPS
- AUXILIARY HARNESS 3' FOR HEADLAMPS AND TURN SIGNALS
- PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
- MIRROR CAPS CHROME
- POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left-hand and right-hand side
- POWER OUTLET 110-VOLT AC

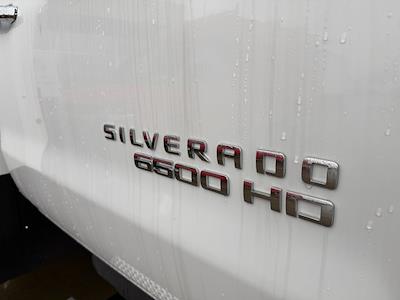

- 6500 HD SERIES
- Turbocharged
- Four Wheel Drive
- Power Steering
- ABS
- Tires - Front All-Season
- Tires - Rear All-Season
- Running Boards/Side Steps
- AM/FM Stereo
- MP3 Capability
- Auxiliary Audio Input
- Split Bench Seat
- Vinyl Seats
- Adjustable Steering Wheel
- Power Door Locks
- Cruise Control
- A/C
- Traction Control
- Stability Control
- Traction Control
- Daytime Running Lights
- Automatic Headlights
- Driver Air Bag
- Passenger Air Bag
- Passenger Air Bag On/Off Switch
- Front Side Air Bag
- Front Head Air Bag
- Passenger Air Bag On/Off Switch
- Back-Up Camera
- View All
Body Details
Manufacturer
Body Type
Mechanics Body
Body Model
TMAX1-11 V2 Crane Service Body
Air Compressor Manufacturer
Stellar
Air Compressor Model
30P
Air Compressor Description
Hydraulic Driven Air Compressor
Air Compressor Cubic Feet Per Minute (CFM)
30.0
Air Compressor Pounds Per Square Inch (PSI)
100
Crane Manufacturer
Stellar
Body Length
11' 1"
Body Width
94"
Body Height
60"
Body Inside Width
50"
Body Weight
3,830 LBS
Compartment Depth
22"
Lighting Type
LED
Lighting Description
Work Lights
Lighting Quantity
4
Lighting Location
Exterior
Outriggers Type
Hydraulic
Outriggers Description
Full Hydraulic Power In/Out, Power Up/Down
TMAX Series Features
Stellar Industries offers the most innovative features in the industry as standard on all mechanics service bodies. Complete turnkey packages are available with your choice of Stellar® Telescopic Crane, American Eagle® Air Compressor and Drawer Systems.
| Call For Pricing |
Pricing Details
| MSRP | $77,295 |
| Dealer Discount | - $41,670 |
| Bachman Price | $35,625 |
| Body Cost | + $141,360 |
| SALE Price: | $176,985 |
| Total Savings | $41,670 |
Pricing may vary based on availability and is subject to final upfitter cost and invoicing. Due to timing of website updates, upfit pricing may be delayed in attaching to listing and may be missing. Please contact the dealer for more details.
Manufacturer incentives and discounts are subject to verification and customer qualification. Not all customers qualify for all discounts. Please contact the dealer for more details.
Vehicle available NOW in Louisville, KY.
Contact Bachman Chevrolet for more info.
(502) 369-7791
