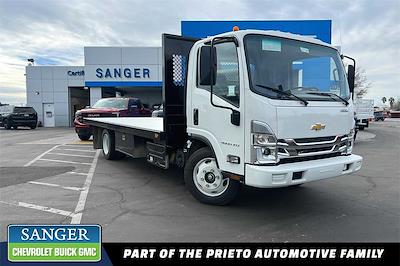

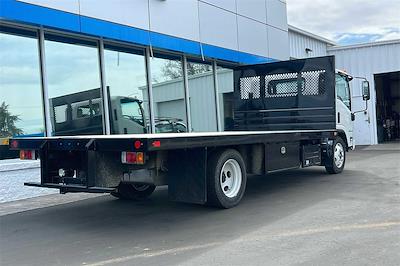

New 2023 Chevrolet LCF 4500XD Regular Cab Marathon Steel Flatbed Truck
Stock #23T388
Vehicle Notes
Artic White 2023 Chevrolet 4500HD LCF Diesel RWD Aisin 6-Speed Automatic 5.2L 4 Cylinder 16V
Chassis Details
Stock Number
23T388
Stock Type
New
Year
2023
Make
Chevrolet
Model
LCF 4500XD
Class
4
GVWR
16,000
Drivetrain
RWD
Cab Type
Regular
Vehicle VIN
JALCDW164P7K01178
Interior Color
Medium Ash Gray, Cloth Seat Trim
Seating Capacity
3
Exterior Color Description
Arc White
Engine Cylinder Count
4
Transmission Type
Automatic
Fuel Type
Diesel
Engine Make
Isuzu
Engine Model
4HK1-TC
Engine Size (L)
5.2
Horsepower
215
Brake Type
Hydraulic
Vehicle Options
- Driver Information Center, (DIC) (monitors vital functions including diesel exhaust fluid levels (DEF), particulate matter emissions level in the diesel particulate filter (DPF), diesel particulate filter regeneration, service reminders for engine oil, transmission oil, differential oil, power steering fluid, engine oil filter, and fuel filters. The DIC provides fuel economy reporting by average, instant, and trip.)
- Lighting, interior dome
- Windshield washer bottle access on passenger side dash when passenger-side door is open
- Wheelbase, 176" (447.0 cm)
- Air conditioning, single-zone manual, integral in-dash mounted
- Alternator, 140 amps
- Emissions, 50 state certification
- Incomplete vehicle certification
- Windshield wiper, pulse, wet arm
- Steering wheel, urethane
- Steering wheel, tilt and telescopic
- Drivetrain, rear-wheel drive
- Rear Suspension, 14,308 lbs. (6490 kg), multi-leaf, semi-elliptical steel alloy. Includes shock absorbers
- Floor mats
- Seat, front high back bucket driver and passenger tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat (STD)
- Wheels, 19.5" x 6", K steel
- Windows, power
- Exhaust, single horizontal outlet
- Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
- Rear axle, 4.77 ratio
- Brake, parking, cable actuated, internal expanding drum type, transmission-mounted
- Brakes, 4-wheel antilock, front and rear disc with traction control and stability control
- Audio system feature, 2 speakers
- Tires, front, 225/70R19.5 F 125/123 L BW HWY VAR1
- Mirror, outside left-hand and right hand dual cab-mounted with integral convex mirror
- Vehicle Application Truck
- Engine, Diesel 5.2L 4 cylinder 215 hp [160.3 kW] @2500 rpm, 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve, four cycle, chain-driven dual overhead camshaft valve train, a cast iron cylinder block, and a cast aluminum cylinder head. Turbocharged, inter-cooled, water cooled EGR, direct injection, electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure, high coolant temperature, and a protection system that will reduce fueling if excessive coolant temperature is detected (STD)
- Front suspension, 8,440 lbs. (3828 kg) tapered leaf
- Cup holders
- Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering. ratio 18.8-20.9:1
- Daytime Running Lamps
- Transmission, 6-speed automatic Aisin A465 transmission with fifth and sixth gear overdrive with lock up in 2nd, 3rd, 4th, 5th and 6th, PTO capability automatic torque converter lockup in stationary PTO mode. (STD)
- Cruise control, electronic, automatic
- Tires, rear, 225/70R19.5 F 125/123 L BW HWY VAR1
- LED Headlamps
- Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
- Rear axle, 11,020 lbs. (4998 kg) R050, full-floating single-speed with oil lubricated rear wheel-bearings
- Assist steps
- Seat trim, Cloth
- Exhaust brake
- Storage, door pockets
- Fuel tank, 30 Gallon, (113L), stainless steel includes 2 auxiliary fuel ports
- Storage, seatback pockets
- Glass, tinted
- Battery, dual 750 cold-cranking amps, 12 volt, maintenance free
- Door locks, power
- GVWR, 16,000 lbs. (7257 kg)
- PIO, Back up alarm
- PIO, Mirror Bracket Extension
- Medium Ash Gray, Cloth Seat Trim
- Arc White
- Preferred Equipment Group
- PIO, Audio System, Enhanced audio system
- PIO, Rear Vision Camera
- PIO, Grille, chrome
- Seat, front high back bucket driver and passenger
- Engine, Diesel 5.2L 4 cylinder
- Transmission, 6-speed automatic Aisin A465 transmission
- Ocean Freight Surcharge
- TIRES, FRONT, 225/70R19.5
- 50-STATE EMISSION
- View All
Body Details
Manufacturer
Body Type
Flatbed Truck
Body Line
Flatbed Truck
Body Model
18' OL x 96" OW Flatbed
Toolbox Type
Under Body
Toolbox Quantity
2
Toolbox Height
18"
Toolbox Length
48"
Toolbox Depth
20"
Body Material
Steel
Body Width
96"
Body Length
18'
Body Color
Black
Bumper Description
ICC Dock Bumper
Cargo Control Type
Rope Hooks
Headache Rack Description
Cab High Punches Steel Headboard - Lower 1/2 Solid
Headache Rack Material
Steel
Lighting Type
LED
Lighting Description
All Marker Lights
Lighting Location
Exterior
Has Mud Flaps
Yes
Floor Material
Aluminum
Camera Description
Backup Camera
