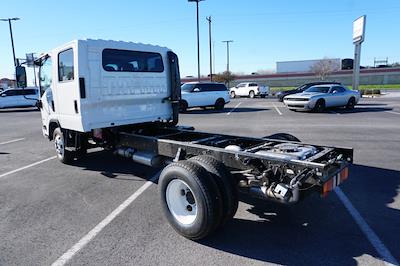

New 2024 Chevrolet LCF 3500HG Crew Cab Cab Chassis
Stock #RS220160
Vehicle Notes
This vehicle won't last long, take it home today. You can finally stop searching... You've found the one you've been looking for. You've found the one…
Read More…
Read More…
Chassis Details
Stock Number
RS220160
Stock Type
New
Year
2024
Make
Chevrolet
Model
LCF 3500HG
Class
3
Drivetrain
RWD
Cab Type
Crew
Vehicle VIN
54DBDJ1D0RS220160
Interior Color
MEDIUM ASH GRAY
Exterior Color Description
WHITE
Engine Cylinder Count
8
Engine
L 8-Cyl Engine
Transmission Type
Automatic
Fuel Type
Gasoline
Engine Model
L8T
Engine Size (L)
6.6
Brake Type
Hydraulic
Vehicle Options
- Audio System, AM/FM stereo with CD player, auxiliary jack, USB port and Bluetooth
- Audio system feature, 2 speakers
- Assist steps
- Windshield wiper, pulse, wet arm
- Tires, front, 215/85R16 E, LRR (low rolling resistance) tubeless steel belted radial, all-season
- Glass, tinted
- LED Headlamps
- Mirror, outside left-hand and right-hand with integral convex mirrors
- Tires, rear, 215/85R16 E, LRR (low rolling resistance) tubeless steel belted radial, all-season
- Wheels, 16 x 6, K. steel
- Grille, Silver
- Seat trim, Cloth
- Storage, door pockets
- Door locks, power
- Steering column, Tilt-Wheel
- Cup holders
- Air conditioning, single-zone manual, integral in-dash mounted
- Windows, power
- Floor mats
- Windshield washer bottle access on passenger side dash when passenger-side door is open
- Storage, seatback pockets
- Steering wheel, urethane
- Lighting, interior dome
- Driver Information Center
- Seat, front high back bucket driver and passenger tricot cloth covered reclining high back driver seat with single two-occupant fold down passenger seat
- Cruise control, electronic, automatic
- Engine, 6.6L V8 SIDI, GMPT-V8 8 cylinder V Iron block, four cycle overhead valve water cooled 6.6L SIDI V8 350 hp [261 kW] @ 4500 rpm, 425 lb.-ft of torque [575.8 N-m] @ 3800 rpm. Electronically controlled direct fuel injection. Six bolt main cap design for heavy-duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control, engine oil cooler, High Idle Mode (1200 rpm).
- Rear suspension, 12,900 lbs. (5851 kg), multi-leaf, semi-elliptical steel alloy. Includes shock absorbers
- Front axle, 6,830 lbs. (3098 kg), reverse Elliot I-beam includes integral hydraulic power steering, with an 18.8-20.9:1 gear ratio
- Brakes, 4-wheel antilock, front and rear disc
- Vehicle Application Truck
- Wheelbase, 150 (381.0 cm)
- Transmission, 6-speed automatic, 6L90-E Hydra-Matic with lock-up converter and overdrive. Ratios: Gear and Ratios 4.027, 2.364 ,1.532, 1.152, 0.852, 0.667, Rev. 3.064:1
- Fuel tank, 38.6 Gallon, (146L), rectangular fuel tank mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill.
- Incomplete vehicle certification
- Battery, 750 cold-cranking amps, 12-volt single, maintenance free, frame-mounted battery box
- Drivetrain, rear-wheel drive
- Rear axle, 4.10 ratio
- Air cleaner, heavy-duty, 11 diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
- GVWR, 12,000 lbs. (5443 kg)
- Exhaust, single outlet
- Frame, ladder-type channel frame. Full C section straight frame 33.5 (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
- Brake, parking, cable actuated, internal expanding drum type, transmission-mounted
- Daytime Running Lamps
- View All
Body Details
Body Type
Cab Chassis
