New 2024 Chevrolet LCF 4500XD Crew Cab Cab Chassis

Stock #246351

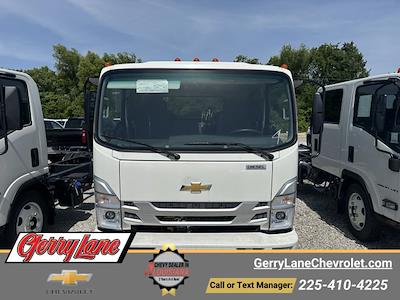

New 2024 Chevrolet LCF 4500XD Crew Cab Cab Chassis for sale #246351 - photo 1
Dealer Video

Vehicle Notes

Arc White 2024 Chevrolet 4500 HD LCF Diesel RWD Aisin 6-Speed Automatic 5.2L 4 Cylinder 16V

Chassis Details

Stock Number
246351
Stock Type
New
Year
2024
Make
Chevrolet
Model
LCF 4500XD
Class
4
GVWR
16,000
Drivetrain
RWD
Cab Type
Crew
Vehicle VIN
JALCDJ168R7K02727
Interior Color
Medium Ash Gray, Cloth Seat Trim
Seating Capacity
7
Exterior Color Description
Arc White
Engine Cylinder Count
4
Engine
Engine, Diesel 5.2L 4 Cylinder, 215 hp [160.3 kW]
Transmission Type
Automatic
Fuel Type
Diesel
Engine Make
Isuzu
Engine Model
4HK1-TC
Engine Size (L)
5.2
Horsepower
215
Brake Type
Hydraulic

Vehicle Options

  • Brakes, 4-wheel antilock, front and rear disc with traction control and stability control
  • Audio system feature, 2 speakers
  • Mirror, outside left-hand and right hand dual cab-mounted with integral convex mirror
  • Vehicle Application Truck
  • Lighting, interior dome
  • Windshield washer bottle access on passenger side dash when passenger-side door is open
  • Wheelbase, 176" (447.0 cm)
  • Air conditioning, single-zone manual, integral in-dash mounted
  • Alternator, 140 amps
  • Emissions, 50 state certification
  • Rear axle, 11,020 lbs. (4998 kg), full-floating with oil lubricated rear wheel-bearings
  • Tires, front, 225/70R19.5 F all-season
  • Incomplete vehicle certification
  • Windshield wiper, pulse, wet arm
  • Steering wheel, urethane
  • Steering wheel, tilt and telescopic
  • Drivetrain, rear-wheel drive
  • Tires, rear, 225/70R19.5 F, all-season
  • Driver Information Center, (DIC) (monitors vital functions including diesel exhaust fluid levels (DEF), particulate matter emissions level in the diesel particulate filter (DPF), diesel particulate filter regeneration, service reminders for engine oil, transmission oil, differential oil, power steering fluid, engine oil filter, and fuel filters. Also provides fuel economy reporting by average, instant, and trip.)
  • Front suspension, 8,440 lbs. (3828 kg) tapered leaf springs. Includes shock absorbers and stabilizer bar.
  • Floor mats
  • Grille, Silver
  • Seat, front high back bucket driver and passenger tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat (STD)
  • Windows, power
  • Exhaust, single horizontal outlet
  • Wheels, 19.5" x 6", K steel (STD)
  • Rear axle, 4.77 ratio
  • Brake, parking, cable actuated, internal expanding drum type, transmission-mounted
  • Engine, Diesel 5.2L 4 cylinder 215 hp [160.3 kW] @2500 rpm, 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve, four cycle, chain-driven dual overhead camshaft valve train, a cast iron cylinder block, and a cast aluminum cylinder head. Turbocharged, inter-cooled, water cooled EGR, direct injection, electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure, high coolant temperature, and a protection system that will reduce fueling if excessive coolant temperature is detected (STD)
  • Cup holders
  • Daytime Running Lamps
  • Transmission, 6-speed automatic Aisin A465 transmission with fifth and sixth gear overdrive with lock up in 2nd, 3rd, 4th, 5th and 6th, PTO capability automatic torque converter lockup in stationary PTO mode. (STD)
  • Cruise control, electronic, automatic
  • LED Headlamps
  • Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering with an 18.8-20.9:1 gear ratio
  • Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
  • Assist steps
  • Rear Suspension, 14,308 lbs. (6490 kg), multi-leaf spring with shock absorbers
  • Seat trim, Cloth
  • Exhaust brake
  • Storage, door pockets
  • Fuel tank, 30 Gallon, (113L), stainless steel includes 2 auxiliary fuel ports
  • Storage, seatback pockets
  • Glass, tinted
  • Battery, dual 750 cold-cranking amps, 12 volt, maintenance free
  • Door locks, power
  • Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 44,000 psi, section modulus 11.89 cu.in. and RBM 523,160 lb-ft/in per rail.
  • GVWR, 16,000 lbs. (7257 kg)
  • Wheels, 19.5" x 6", K steel
  • PIO, Back up alarm
  • Medium Ash Gray, Cloth Seat Trim
  • Arc White
  • Preferred Equipment Group
  • PIO, Audio System, Enhanced audio system
  • PIO, Rear Vision Camera
  • PIO, Rear dome and body lamp switch
  • Seat, front high back bucket driver and passenger
  • Engine, Diesel 5.2L 4 cylinder
  • PIO, Remote Keyless Entry
  • PIO, Fire extinguisher and safety reflector mounting provisions
  • Transmission, 6-speed automatic Aisin A465 transmission
  • Ocean Freight Surcharge
  • TIRES, FRONT, 225/70R19.5
  • 50-STATE EMISSION
  • View All
New 2024 Chevrolet LCF 4500XD Crew Cab Cab Chassis for sale #246351 - photo 1
Photo shown is a stock image and not an image of this exact vehicle. Contact us for more information.

Body Details

Body Type
Cab Chassis
Call For Pricing

Pricing Details

Vehicle available NOW in Baton Rouge, LA.

Contact Gerry Lane Chevrolet for more info.
