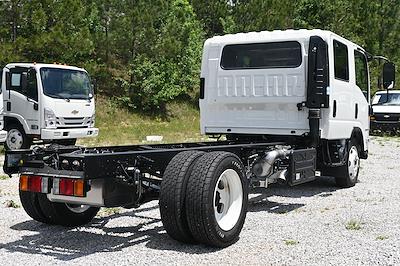

New 2025 Chevrolet LCF 4500XD Crew Cab Cab Chassis
Stock #CS02165
Vehicle Notes
Arc White exterior and Medium Ash Gray interior, 4500 XD LCF Diesel trim. ENGINE, DIESEL 5.2L 4 CYLINDER, PIO, AUDIO SYSTEM, ENHANCED AUDIO SYS. TRANS…
Read More…
Read More…
Chassis Details
Stock Number
CS02165
Stock Type
New
Year
2025
Make
Chevrolet
Model
LCF 4500XD
Class
4
GVWR
16,000
Drivetrain
RWD
Cab Type
Crew
Vehicle VIN
JALCDJ166S7K02165
Interior Color
Medium Ash Gray, Cloth Seat Trim
Seating Capacity
7
Exterior Color Description
Arc White
Engine Cylinder Count
4
Engine
ENGINE DIESEL, 4 CYL, 5.2L, 4HK1TC 215HP
Transmission Type
Automatic
Fuel Type
Diesel
Engine Make
Isuzu
Engine Model
4HK1-TC
Engine Size (L)
5.2
Horsepower
215
Brake Type
Hydraulic
Vehicle Options
- Brakes, 4-wheel antilock, front and rear disc with traction control and stability control
- Audio system feature, 2 speakers
- Mirror, outside left-hand and right hand dual cab-mounted with integral convex mirror
- Tires, rear, 225/70R19.5 F, all-season (Standard on 4500 XD and 5500 XD only.) (STD)
- Vehicle Application Truck
- Rear dome and body lamp switch
- Airbags, frontal, driver and right front passenger
- Emissions, Federal certification. Does NOT meet California emissions requirements - TRUCKS CANNOT BE SOLD OR REGISTERED IN CALIFORNIA.
- Lighting, interior dome
- Windshield washer bottle access on passenger side dash when passenger-side door is open
- Wheelbase, 176" (447.0 cm)
- LED Headlamps includes integrated LED turn signal indicators
- Alternator, 140 amps
- Grille, Black
- Front suspension, 8,440 lbs. (3828 kg) tapered leaf springs. Includes shock absorbers and stabilizer bar. (Standard on 4500 XD and 5500 XD only.)
- Rear axle, 11,020 lbs. (4998 kg), full-floating with oil lubricated rear wheel-bearings
- Incomplete vehicle certification
- Windshield wiper, pulse, wet arm
- Steering wheel, urethane
- Steering wheel, tilt and telescopic
- Drivetrain, rear-wheel drive
- Rear Suspension, 14,308 lbs. (6490 kg), tapered leaf spring with shock absorbers (Standard on 4500 XD only.)
- Driver Information Center, (DIC) (monitors vital functions including diesel exhaust fluid levels (DEF), particulate matter emissions level in the diesel particulate filter (DPF), diesel particulate filter regeneration, service reminders for engine oil, transmission oil, differential oil, power steering fluid, engine oil filter, and fuel filters. Also provides fuel economy reporting by average, instant, and trip.)
- Floor mats
- Seat, front high back bucket driver and passenger tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat (STD)
- Windows, power
- Exhaust, single horizontal outlet
- Wheels, 19.5" x 6, steel (STD) (Standard on 4500 XD and 5500 XD only.)
- Headlamp washer system
- Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide.
- Rear axle, 4.77 ratio
- Engine, Diesel 5.2L 4 cylinder 215 hp [160.3 kW] @2500 rpm, 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve, four cycle, chain-driven dual overhead camshaft valve train, a cast iron cylinder block, and a cast aluminum cylinder head. Turbocharged, inter-cooled, water cooled EGR, direct injection, electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure, high coolant temperature, and a protection system that will reduce fueling if excessive coolant temperature is detected (STD)
- Cup holders
- Daytime Running Lamps
- Transmission, 6-speed automatic Aisin A465 transmission with fifth and sixth gear overdrive with lock up in 2nd, 3rd, 4th, 5th and 6th, PTO capability automatic torque converter lockup in stationary PTO mode. (STD)
- Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering with an 18.8-20.9:1 gear ratio (Standard on 4500 HD and 4500 XD only.)
- Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
- Assist steps
- Seat trim, Cloth
- Tires, front, 225/70R19.5 F, all-season (STD)
- Exhaust brake
- Storage, door pockets
- Fuel tank, 30 Gallon, (113L), stainless steel includes 2 auxiliary fuel ports
- Storage, seatback pockets
- Glass, tinted
- Battery, dual 750 cold-cranking amps, 12 volt, maintenance free
- Door locks, power
- GVWR, 16,000 lbs. (7257 kg)
- Air conditioning, single-zone electronic, integral in-dash mounted
- Advanced Driver Assistance System
- Tires, rear, 225/70R19.5 F, all-season
- Brake, parking, electronic
- Arc White
- Preferred Equipment Group
- PIO, Audio System, Enhanced audio system
- California Restriction Acknowledgement.
- Automatic Emergency Braking
- Adaptive Cruise Control
- PIO, Rear Vision Camera
- Medium Ash Gray, Cloth Seat Trim
- Forward Collision Alert
- Seat, front high back bucket driver and passenger
- Lane Departure Warning
- Engine, Diesel 5.2L 4 cylinder
- Tires, front, 225/70R19.5 F, all-season
- Wheels, 19.5" x 6, steel
- Transmission, 6-speed automatic Aisin A465 transmission
- 50-STATE EMISSIONS
- View All
Body Details
Body Type
Cab Chassis
| Call For Pricing |
Pricing Details
| MSRP | $83,010 |
| Incentives | - $1,750 |
| Hendrick Price | $81,260 |
| Total Savings | $1,750 |
Vehicle available NOW in Hoover, AL.
Contact Hendrick Chevrolet Hoover for more info.
(205) 465-0240
Disclaimer:
* Picture may not represent actual vehicle. MSRP varies based on Trim levels and options. See dealer for in-stock inventory and actual selling price. With Approved Credit plus TT&L.
** Based on 2015 EPA mileage ratings. Use for comparison purposes only. Your mileage will vary depending on driving conditions, how you drive and maintain your vehicle, battery-package/condition and other factors.
