Call For Pricing

New 2023 Chevrolet LCF 4500 Crew Cab Cab Chassis

Stock #C23-4247

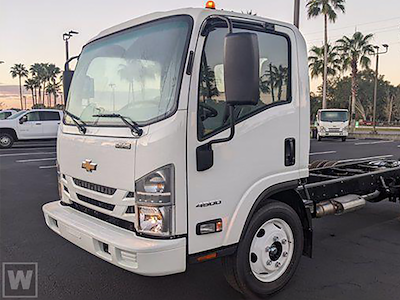

New 2023 Chevrolet LCF 4500 Crew Cab Cab Chassis for sale #C23-4247 - photo 1
Photo shown is a stock image and not an image of this exact vehicle. Contact us for more information.
Dealer Video

Vehicle Notes

Arc White exterior and Medium Ash Gray interior. CD Player, iPod/MP3 Input, TRANSMISSION, 6-SPEED AUTOMATIC, 6L90... ENGINE, 6.6L V8 SIDI, GMPT-V8 8 C…
Read More… Arc White exterior and Medium Ash Gray interior. CD Player, iPod/MP3 Input, TRANSMISSION, 6-SPEED AUTOMATIC, 6L90... ENGINE, 6.6L V8 SIDI, GMPT-V8 8 CYLIN... PIO, AUDIO SYSTEM, ENHANCED AUDIO SYS... PIO, MIRROR, OUTSIDE LEFT HAND AND RI...

KEY FEATURES INCLUDE
Running Boards, iPod/MP3 Input, CD Player. Chevrolet 4500 LCF Gas with Arc White exterior and Medium Ash Gray interior features a 8 Cylinder Engine with 350 HP at 4500 RPM*.

OPTION PACKAGES
PIO, AUDIO SYSTEM, ENHANCED AUDIO SYSTEM with 7" diagonal color touchscreen, AM/FM stereo with seek-and-scan and digital clock. Additional features for compatible phones include: Bluetooth® audio streaming, SiriusXM Radio with customer subscription, Apple CarPlay®, Android Auto® capable, navigation using Apple CarPlay® or Android Auto® and Rear Vision Camera. (Port Installed Option) (Includes (UVC) Rear Vision Camera, PIO.). PIO, MIRROR, OUTSIDE LEFT HAND AND RIGHT HAND HEATED DUAL REMOTE 17" HEADS (Port Installed Option), PIO, REMOTE KEYLESS ENTRY (Port Installed Option), ENGINE, 6.6L V8 SIDI, GMPT-V8 8 CYLINDER V IRON BLOCK, FOUR CYCLE OVERHEAD valve water cooled 6.6L SIDI V8 350 hp [261 kW] @ 4500 rpm, 425 lb.-ft of torque [575.8 N-m] @ 3800 rpm. Electronically controlled direct fuel injection. Six bolt main cap design for heavy-duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control, engine oil cooler, High Idle Mode (1200 rpm). (STD), TRANSMISSION, 6-SPEED AUTOMATIC, 6L90-E HYDRA-MATIC WITH LOCK-UP CONVERTER AND OVERDRIVE. Ratios: Gear and Ratios 4.027, 2.364, 1.532, 1.152, 0.852, 0.667, Rev. 3.064:1 (STD).

Horsepower calculations based on trim engine configuration. Please confirm the accuracy of the included equipment by calling us prior to purchase.

Read Less

Chassis Details

Stock Number
C23-4247
Stock Type
New
Year
2023
Make
Chevrolet
Model
LCF 4500
Class
4
GVWR
14,500
Drivetrain
RWD
Cab Type
Crew
Vehicle VIN
54DCDJ1D2PS208691
Interior Color
Medium Ash Gray, Cloth Seat Trim
Seating Capacity
7
Exterior Color Description
Arc White
Engine Cylinder Count
8
Engine
Engine, Gas, 8 Cyl, 6.6L
Transmission Type
Automatic
Fuel Type
Gasoline
Engine Model
L8T
Engine Size (L)
6.6
Horsepower
350
Brake Type
Hydraulic

Vehicle Options

  • Audio system feature, 2 speakers
  • Vehicle Application Truck
  • Tires, rear, 225/70R19.5 G, LRR (low rolling resistance) tubeless steel belted radial, all-season
  • Seat, front high back bucket driver and passenger tricot cloth covered reclining high back driver seat with single two-occupant fold down passenger seat (STD)
  • Lighting, interior dome
  • Windshield washer bottle access on passenger side dash when passenger-side door is open
  • Air conditioning, single-zone manual, integral in-dash mounted
  • Emissions, 50 state certification
  • Incomplete vehicle certification
  • Steering column, Tilt-Wheel
  • Windshield wiper, pulse, wet arm
  • Steering wheel, urethane
  • Drivetrain, rear-wheel drive
  • Tires, front, 225/70R19.5 G, LRR (low rolling resistance) tubeless steel belted radial, all-season
  • Floor mats
  • Grille, Silver
  • Wheels, 19.5" x 6", K steel
  • Windows, power
  • GVWR, 14,500 lbs. (6577 kg)
  • Brakes, 4-wheel antilock, front disc
  • Exhaust, single outlet
  • Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
  • Brake, parking, cable actuated, internal expanding drum type, transmission-mounted
  • Cup holders
  • Fuel tank, 38.6 Gallon, (146L), rectangular fuel tank. mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill.
  • Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering. ratio 18.8-20.9:1
  • Daytime Running Lamps
  • Rear suspension, 12,900 lbs. (5851 kg), multi-leaf, semi-elliptical steel alloy. Includes shock absorbers
  • Cruise control, electronic, automatic
  • Transmission, 6-speed automatic, 6L90-E Hydra-Matic with lock-up converter and overdrive. Ratios: Gear and Ratios 4.027, 2.364 ,1.532, 1.152, 0.852, 0.667, Rev. 3.064:1 (STD)
  • Battery, 750 cold-cranking amps, 12-volt single, maintenance free, frame-mounted battery box
  • LED Headlamps
  • Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
  • Assist steps
  • Wheelbase, 150" (381.0 cm)
  • Engine, 6.6L V8 SIDI, GMPT-V8 8 cylinder V Iron block, four cycle overhead valve water cooled 6.6L SIDI V8 350 hp [261 kW] @ 4500 rpm, 425 lb.-ft of torque [575.8 N-m] @ 3800 rpm. Electronically controlled direct fuel injection. Six bolt main cap design for heavy-duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control, engine oil cooler, High Idle Mode (1200 rpm). (STD)
  • Seat trim, Cloth
  • Storage, door pockets
  • Storage, seatback pockets
  • Driver Information Center
  • Glass, tinted
  • Door locks, power
  • Axle, 4.30 ratio (Standard on 4500 model only.)
  • PIO, Mirror, outside left hand and right hand heated dual remote 17" heads
  • PIO, Back up alarm
  • PIO, Mirror Bracket Extension
  • Medium Ash Gray, Cloth Seat Trim
  • Arc White
  • Preferred Equipment Group
  • PIO, Audio System, Enhanced audio system
  • Transmission, 6-speed automatic, 6L90-E Hydra-Matic with lock-up converter and overdrive.
  • PIO, Rear Vision Camera
  • Engine, 6.6L V8 SIDI, GMPT-V8 8 cylinder V Iron block, four cycle overhead
  • Seat, front high back bucket driver and passenger
  • PIO, Remote Keyless Entry
  • Axle, 4.30 ratio
  • PIO, Fire extinguisher and safety reflector mounting provisions
  • Ocean Freight Surcharge
  • TIRES, FRONT, 225/70R19.5
  • NEW JERSEY COST SURCHARGE
  • 50-STATE EMISSION
  • 38.6 GALLON FUEL TANK
  • View All
New 2023 Chevrolet LCF 4500 Crew Cab Cab Chassis for sale #C23-4247 - photo 1
Photo shown is a stock image and not an image of this exact vehicle. Contact us for more information.

Body Details

Body Type
Cab Chassis
Call For Pricing

Pricing Details

Vehicle available NOW in Hawthorne, NJ.

Contact Hawthorne Chevrolet for more info.

(973) 218-4858
