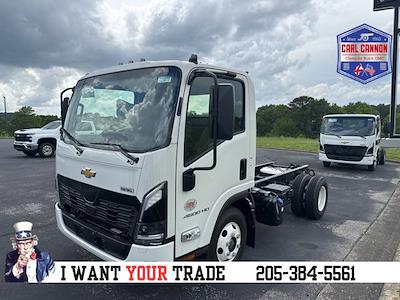

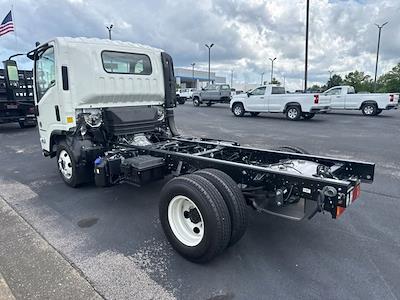

New 2025 Chevrolet LCF 4500HD Regular Cab Cab Chassis
Stock #T25075
Vehicle Notes
Artic White 2025 Chevrolet 4500 HD LCF Diesel Low Cab RWD Aisin 6-Speed Automatic 5.2L I4 Diesel Turbocharged DOHC 16V Federal 215hp ABS brakes, Elect…
Read More…
Read More…
Chassis Details
Stock Number
T25075
Stock Type
New
Year
2025
Make
Chevrolet
Model
LCF 4500HD
Class
4
GVWR
14,500
Drivetrain
RWD
Cab Type
Regular
Vehicle VIN
JALCDW169S7023938
Interior Color
Medium Ash Gray, Cloth Seat Trim
Seating Capacity
3
Exterior Color Description
Arc White
Engine Cylinder Count
4
Transmission Type
Automatic
Fuel Type
Diesel
Engine Make
Isuzu
Engine Model
4HK1-TC
Engine Size (L)
5.2
Horsepower
215
Brake Type
Hydraulic
Vehicle Options
- Brakes, 4-wheel antilock, front and rear disc with traction control and stability control
- Audio system feature, 2 speakers
- Vehicle Application Truck
- Rear dome and body lamp switch
- Airbags, frontal, driver and right front passenger
- Emissions, Federal certification. Does NOT meet California emissions requirements - TRUCKS CANNOT BE SOLD OR REGISTERED IN CALIFORNIA.
- Lighting, interior dome
- Windshield washer bottle access on passenger side dash when passenger-side door is open
- LED Headlamps includes integrated LED turn signal indicators
- Alternator, 140 amps
- Rear axle, 4.56 ratio
- Wheels, 16" x 6, K. steel (STD)
- Grille, Black
- Wheelbase, 109" (276.9 cm)
- Rear axle, 11,020 lbs. (4998 kg), full-floating with oil lubricated rear wheel-bearings
- Incomplete vehicle certification
- Tires, rear, 215/85R16 E all-season (STD)
- Windshield wiper, pulse, wet arm
- Steering wheel, urethane
- Steering wheel, tilt and telescopic
- Drivetrain, rear-wheel drive
- Driver Information Center, (DIC) (monitors vital functions including diesel exhaust fluid levels (DEF), particulate matter emissions level in the diesel particulate filter (DPF), diesel particulate filter regeneration, service reminders for engine oil, transmission oil, differential oil, power steering fluid, engine oil filter, and fuel filters. Also provides fuel economy reporting by average, instant, and trip.)
- Floor mats
- Seat, front high back bucket driver and passenger tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat (STD)
- Windows, power
- GVWR, 14,500 lbs. (6577 kg)
- Exhaust, single horizontal outlet
- Headlamp washer system
- Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide.
- Engine, Diesel 5.2L 4 cylinder 215 hp [160.3 kW] @2500 rpm, 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve, four cycle, chain-driven dual overhead camshaft valve train, a cast iron cylinder block, and a cast aluminum cylinder head. Turbocharged, inter-cooled, water cooled EGR, direct injection, electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure, high coolant temperature, and a protection system that will reduce fueling if excessive coolant temperature is detected (STD)
- Cup holders
- Daytime Running Lamps
- Transmission, 6-speed automatic Aisin A465 transmission with fifth and sixth gear overdrive with lock up in 2nd, 3rd, 4th, 5th and 6th, PTO capability automatic torque converter lockup in stationary PTO mode. (STD)
- Front suspension, 6,830 lbs. (3098 kg) tapered leaf, semi-elliptical steel alloy. Includes shock absorbers and stabilizer bar.
- Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering with an 18.8-20.9:1 gear ratio (Standard on 4500 HD and 4500 XD only.)
- Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
- Assist steps
- Rear Suspension, 9,880 lbs. (4481kg), tapered leaf spring with shock absorbers (Standard on 4500 HD only.)
- Tires, front, 215/85R16 E, all-season (STD)
- Seat trim, Cloth
- Exhaust brake
- Storage, door pockets
- Fuel tank, 30 Gallon, (113L), stainless steel includes 2 auxiliary fuel ports
- Storage, seatback pockets
- Glass, tinted
- Battery, dual 750 cold-cranking amps, 12 volt, maintenance free
- Door locks, power
- Air conditioning, single-zone electronic, integral in-dash mounted
- Advanced Driver Assistance System
- PIO, Mirror, outside left-hand and right-hand with integral convex mirrors, heated
- Brake, parking, electronic
- PIO, Extra Set of Keys
- Arc White
- Preferred Equipment Group
- PIO, Audio System, Enhanced audio system
- California Restriction Acknowledgement.
- Automatic Emergency Braking
- Wheels, 16" x 6, K. steel
- Adaptive Cruise Control
- PIO, Rear Vision Camera
- Tires, rear, 215/85R16 E all-season
- Medium Ash Gray, Cloth Seat Trim
- Forward Collision Alert
- Seat, front high back bucket driver and passenger
- Lane Departure Warning
- Tires, front, 215/85R16 E, all-season
- Engine, Diesel 5.2L 4 cylinder
- Transmission, 6-speed automatic Aisin A465 transmission
- 50-STATE EMISSIONS
- View All
Body Details
Body Type
Cab Chassis
| Call For Pricing |
Pricing Details
Vehicle available NOW in Jasper, AL.
Contact Carl Cannon Chevrolet Buick for more info.
(205) 651-1543Similar Vehicles
-
-
